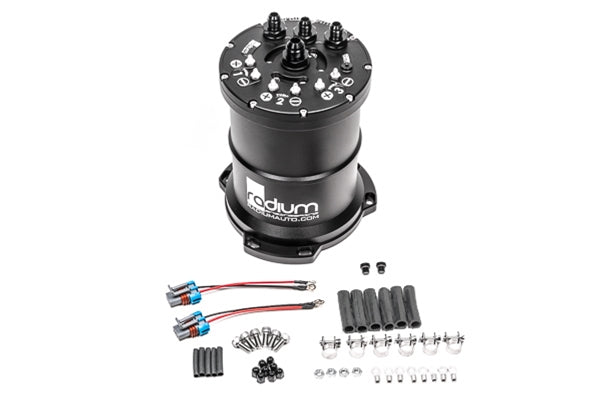

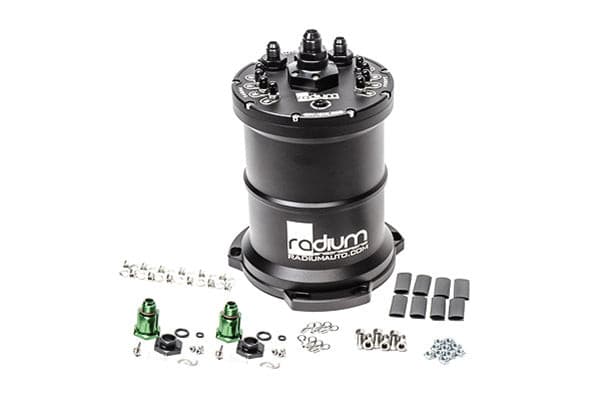

Radium Fuel Surge Tank Ti Automotive E5Lm Pumps Not Included

Radium Fuel Surge Tank Ti Automotive E5Lm Pumps Not Included

Regular price £571.40 GBP
Regular price £762.72 GBP Sale price £571.40 GBP
Sale Sold out
Tax included.

SKU: 20-0443-00

Radium Engineering MPFST is the perfect solution for high power vehicles experiencing fuel starvation during aggressive driving Multiple high flow fuel pumps can be used

fuel surge tank (FST) is designed to prevent fuel starvation to the engine on vehicles with inadequate fuel tank baffling. Fuel is supplied to the surge tank by a lift pump, which in most cases is the OEM in-tank fuel pump.  The volume of fuel inside the surge tank acts as a buffer to always keep the FST pump(s) supplied with fuel, even if the lift pump starves momentarily. This volume is maintained by the lift pump as well as the fuel returning from the fuel pressure regulator. Excess fuel in the surge tank is returned back to the vehicle's main fuel tank. The surge tank also provides a quick and easy way to upgade any standard fuel system without opening the stock fuel tank. This is an excellent fueling solution for vehicles installing large demand power upgrades such as forced induction

Because the compatible pumps utilize a check valve, the MPFST merges all pumps into a single outlet simplifying external plumbing. NOTE: The brushless Ti Automotive E5LM MPFST includes check valves (shown below in green).

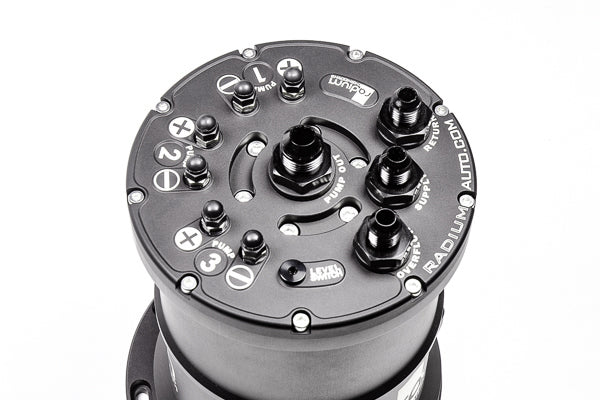

This "PUMP OUT" port is 10AN ORB threaded but comes preinstalled with a -8AN male adapter fitting. The "OVERFLOW", "SUPPLY", and "RETURN" ports are all 8AN ORB threaded but come preinstalled with -6AN male adapter fittings. All of these fittings can be swapped out with different sizes (sold separately).

When fuel enters the MPFST through the "SUPPLY" and "RETURN" ports, it gets redirected and runs tangential through the canister creating a swirl pot. This helps eliminate unwanted air bubbles and fuel foam that can affect fuel pump and engine performance.

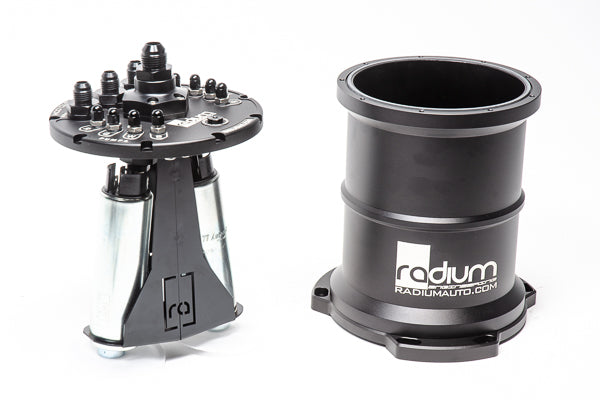

The MPFST comes ready for the end user to install 1, 2, or 3 pumps.

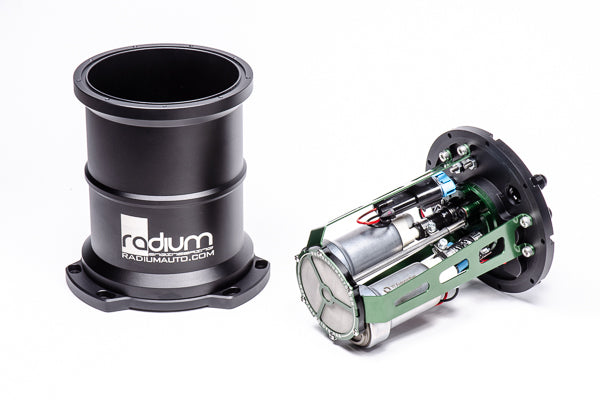

Fuel surge tank compatible with Ti Automotive E5LM brushless fuel pumps (BKS1000). Can hold one or two pumps. Fuel pumps sold separately and must be installed by the end user. Compatible with E85 and other fuels.
