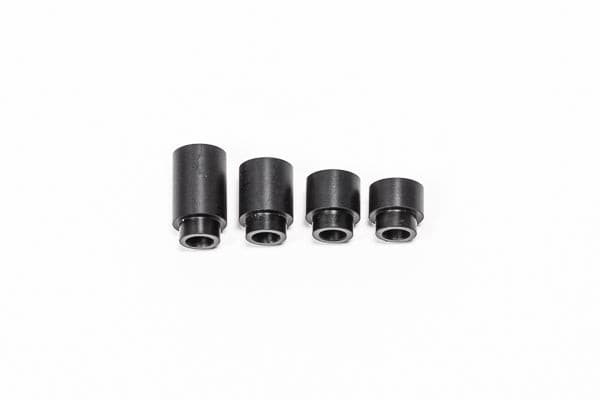

Radium Insulating phenolic Spacer 15Mm

Radium Insulating phenolic Spacer 15Mm

Regular price £10.70 GBP
Regular price £14.32 GBP Sale price £10.70 GBP
Sale Sold out
Tax included.

SKU: 14-0715

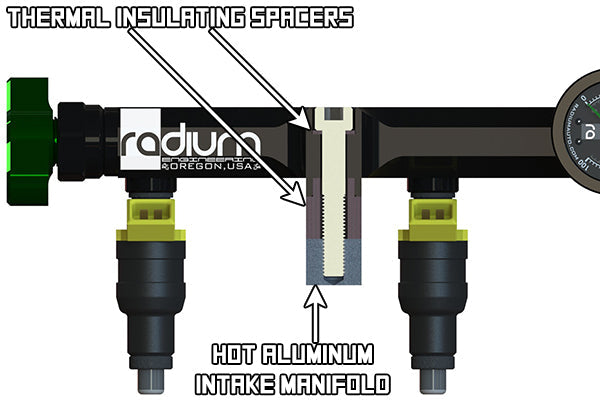

These press-fit spacers and washers are used with many Radium Engineering kits for thermally isolating the fuel rail from the engine. its.

1. These are sold individually. Double check how many are required prior to purchasing.
2. Spacer height measurement does not include press-fit insert length. Example: total height for 14-0711 Insulating Spacer, 11mm is 17.3mm.
3. These can be used as replacements for Radium Engineering fuel rails that use phenolic spacers.
4. Mounting hardware is not included. However, most bolts are common and can be sourced in local hardware stores.

Outer Diameter: 19mm
Inner Hole Diameter: 9.6mm
Press-Fit Outer Diameter: 14.2mm
Press-Fit Insert Length: 6.4mm
Max Temperature: 210F
Tensile Strength: 17,000psi

Outer Diameter: 12.7mm
Inner Hole Diameter: 7.9mm
Washer Thickness: 0.8mm
Max Temperature: 210F
