Radium Fuel Level Switch1/8 Npt

Radium Fuel Level Switch1/8 Npt

Regular price £91.60 GBP
Regular price £122.27 GBP Sale price £91.60 GBP
Sale Sold out
Tax included.

SKU: 20-0461

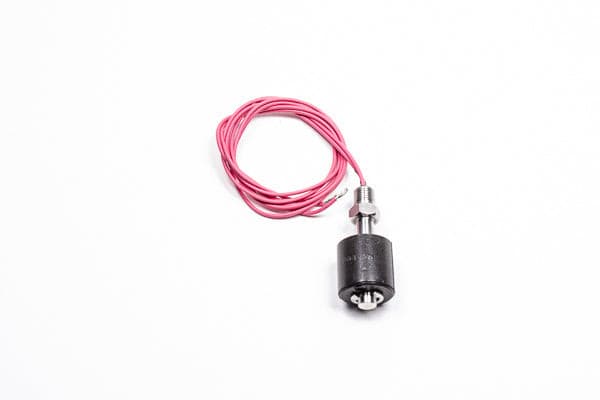

When fuel level drops, a switched signal can be sent to a unit such as a dashboard mounted indicator or programmable ECU input for safety purposes. The level switch is constructed of corrosion resistant stainless steel compatible with all fuel types. It includes 24" long, 20AWG flying leads.Stainless steel construction with special float that works in all popular vehicle fuels including E85. Switch activates when float changes position.
NOTES:
1. Prior to installing, check the direction of the signal on a test bench.
2. Switch polarity can easily be reversed by removing the E-clip and flipping the float.

3. 1/8" NPT threaded port is required for installing.
4. Always apply PTFE thread sealant to tapered pipe threads.
