Radium Engineering Port Injection Kit R8, Gallardo LP

Radium Engineering Port Injection Kit R8, Gallardo LP

Regular price £1,106.60 GBP
Regular price £1,477.06 GBP Sale price £1,106.60 GBP
Sale Sold out
Tax included.

SKU: 20-0865

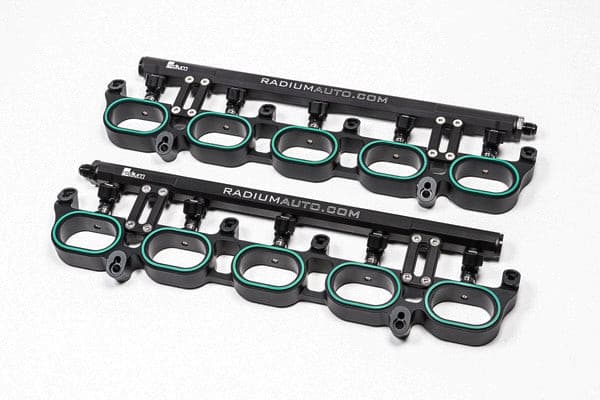

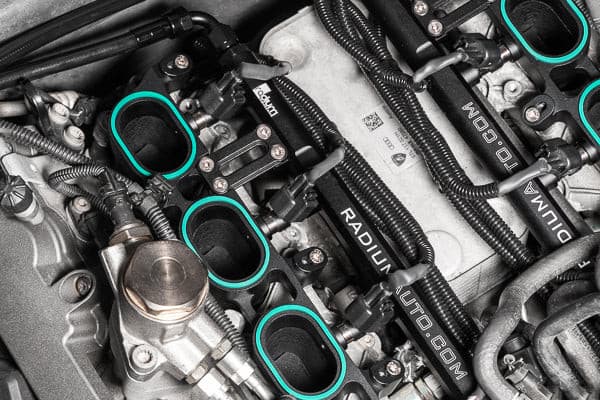

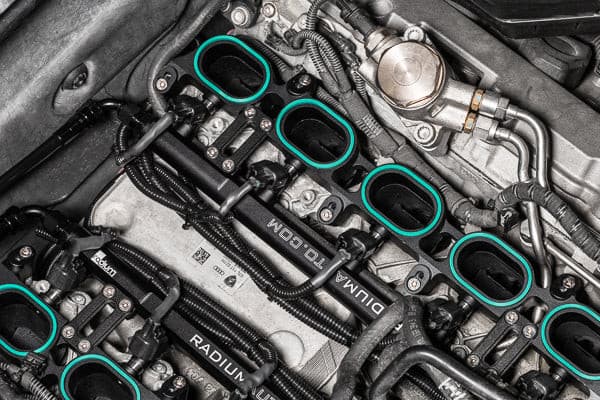

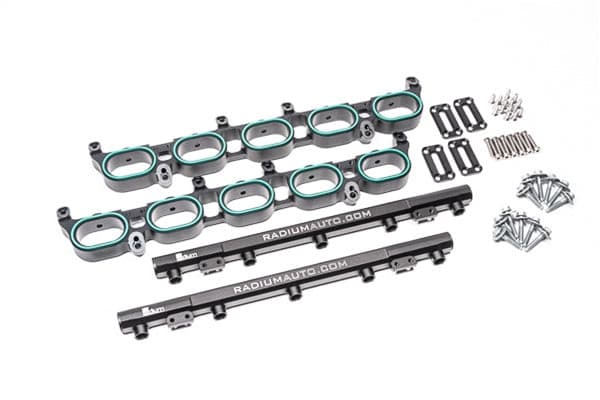

The Radium Engineering Port Injection Kit (PIK) installs between the intake manifold and the lower runners on the cylinder heads. It permits the use of port injectors for the additional fuel required for highly-modified 5.2L V10 engines. This does NOT replace the OEM direct injection system.

The fuel rails are CNC machined from extruded 6063 aluminum with a large 0.69in (17.5mm) bore. They are anodized for oxidation protection and laser etched for a high quality surface finish. Both end ports of each fuel rail are machined with 8AN ORB (3/4-16 female) threads


06-15 Audi R8 Type42 (all GEN-1 V10 trims)
08-13 Lamborghini Gallardo LP550-2 (all trims)
08-13 Lamborghini Gallardo LP560-4 (all trims)
08-13 Lamborghini Gallardo LP570-4 (all trims)

1. Not compatible with the 1st generation Lamborghini Gallardo 5.0L engine.
2. Not compatible with the 2nd generation Audi R8 Type-4S upper or lower intake manifold.
3. Not compatible with the Lamborghini Huracan upper or lower intake manifold.

Below are some of the many fuel injectors that are a direct fitment.

Injector Dynamics ID850-34-14-14
Injector Dynamics ID1050x-34-14-14
Injector Dynamics ID1300-34-14-14
Injector Dynamics ID1700-34-14-14
Injector Dynamics ID2000-34-14-14
Evolved Injection DPI550-38-14-14
Evolved Injection DPI650-38-14-14
Evolved Injection DPI850-38-14-14
Evolved Injection DPI1000-38-14-14
Evolved Injection DPI1200-38-14-14
Evolved Injection DPI1300-38-14-14
Evolved Injection DPI2200-38-14-14
Deatschwerks 16U-00-0042-4
Deatschwerks 16U-00-0050-4
Deatschwerks 16U-00-0065-4
Deatschwerks 16U-00-0090-4
Deatschwerks 16M-00-1500-4
Deatschwerks 16M-00-2200-4
