Radium Engineering 92-02 Toyote Supra 2JZ-GTE Top Feed Fuel Rail Kit

Radium Engineering 92-02 Toyote Supra 2JZ-GTE Top Feed Fuel Rail Kit

Regular price £246.30 GBP
Regular price Sale price £246.30 GBP
Sale Sold out
Tax included.

SKU: 20-0215

Radium Engineering Fuel Rail Compatible with all Toyota 2JZ-GTE engines (VVTi and non-VVTi) that use the OEM intake manifold.

Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. They are CNC machined from a custom 6063 aluminum, media blasted, black anodized, and laser etched for a high quality surface finish. This kit is compatible with all fuel types including popular alcohol mixtures such as E85.

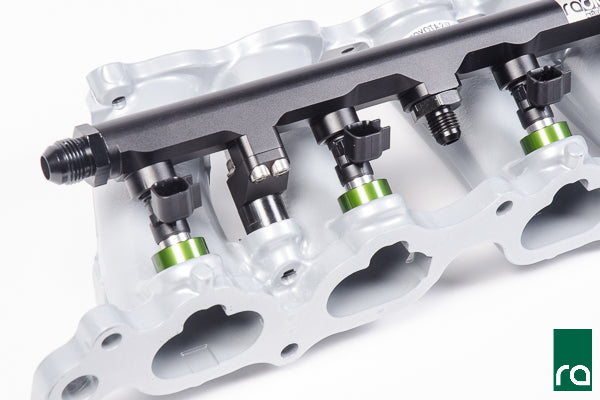

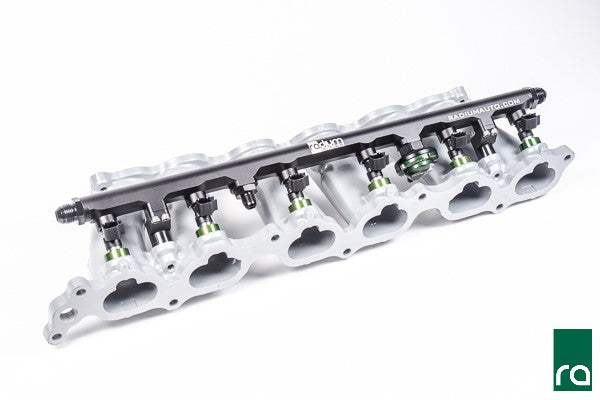

The Radium fuel rail converts the OEM side feed fuel injector setup to top feed, allowing the use of high flow fuel injectors (NOT INCLUDED). The kit includes 2 different sets of mounting feet allowing various height fuel injectors to be used

To reuse the OEM fuel pressure regulator, select the 20-0301 (shown below). If securing to the front port, modification to the Traction Control TPS sensor is required when using the tall spacers. Check for firewall clearance if mounting on the rear port.

To reuse the factory fuel feed line, select 14-0285 8AN ORB to M12x1.25mm Female Fitting. This can secure to the rear port and reuse the OEM fuel feed banjo bolt.

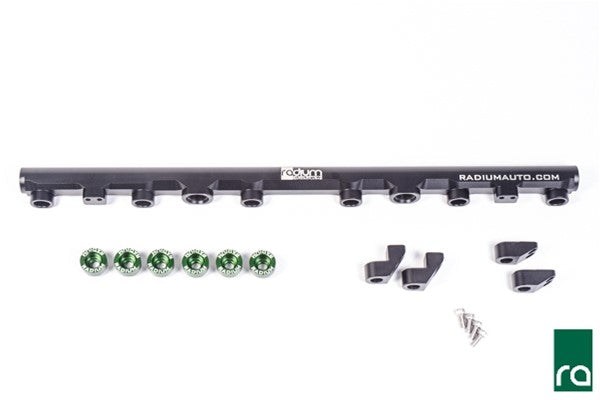

20-0215 Toyota 2JZ-GTE Fuel Rail:
-Black Anodized Laser Etched Aluminum Fuel Rail
-Black Anodized Aluminum Mounting Feet, Tall and Short
-Stainless Steel Mounting Feet Bolts (x4)
-20-0216-06 Toyota Injector Seat Kit, 6 Cylinder
