Radium Dpi Fuel Rails, Subaru Ej

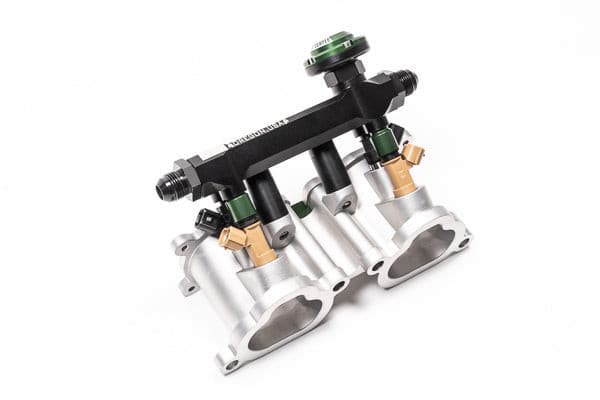

CNC machined fuel rails for designed specifically for use with Radium 20-0489-XX TGV housings. Allows the use of two fuel injectors per cylinder runner. Fuel injectors not included

FUEL INJECTOR FITMENT

Each fuel rail has 4 injector ports that are machined to permit injectors with 14mm O-rings.

Primary Lower Fuel Injectors
Using the provided adapters, both OEM Subaru or 60mm Bosch EV14 style fuel injectors can be used. To reuse the OEM Subaru injectors, the provided top hat must be installed over the upper OEM injector O-ring as shown below.

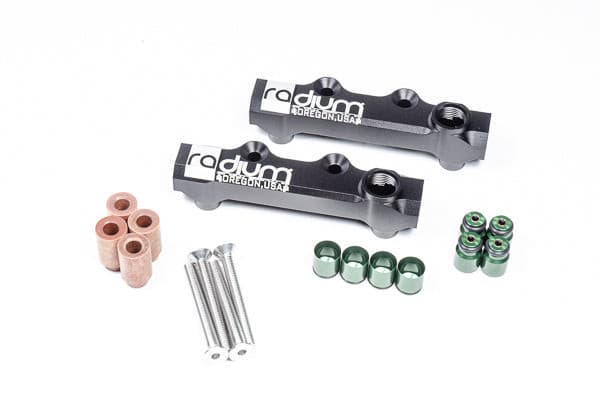

INCLUDED

-Black Laser Etched Aluminum Fuel Rails (x2)
-Injector Seats for Aftermarket Injectors (x4)
-Injector Hats with Filter Screens for OEM Injectors (x4)
-Thermal Insulating Press-In Spacers (x4)
-Stainless Steel Hardware
-FKM O-ring Seals
