Radium 10An Orb Swivel Banjo To .313 Sae Male

Radium 10An Orb Swivel Banjo To .313 Sae Male

Regular price £37.70 GBP
Regular price £50.29 GBP Sale price £37.70 GBP
Sale Sold out
Tax included.

SKU: 20-1000-10313

Radium Engineering banjo fittings have the ability to rotate 360 degrees, even after installation. They are an excellent option for 90-degree connections and are very low profile
Suitable for use in high pressure fuel and oil systems. Do not exceed 400 psi.

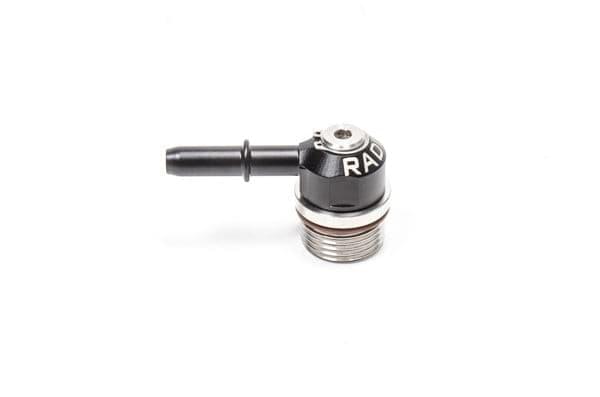

Radium 10An Orb Swivel Banjo To .313 Sae MaleThis 90 degree fittings screws into a 10AN ORB female port and allows attachment of a 5/16 Quick Connect SAE hose fitting. Fitting swivels 360 degrees.

These adapter fittings are available in a variety of configurations. They push-on and secure to most modern USA, European, Japanese, etc. fuel injection systems and are used to convert an OEM SAE Quick Connect connection

To determine the required size, simply measure the outside diameter of the male fitting as shown below.
0.3125 = 5/16"
0.375 = 3/8"
0.50 = 1/2"
