Elite 2500 T + V8 Small/Big Block GM Injector Connector: Bosch EV1

Elite 2500 T + V8 Small/Big Block GM Injector Connector: Bosch EV1

Regular price £3,733.00 GBP
Regular price Sale price £3,733.00 GBP
Sale Sold out
Tax included.

SKU: HT-151315

The fastest and most cost effective way to wire your race car or engine conversion! Simply connect a handful of labelled wires and this plug and Play product allows you to be up and running in just a few hours.
  • efficient Haltech Plug'n'Play product that allows you to be up and running in just a few hours.
  • quick start guide will walk you through installation of the Haltech Plug'n'Play harness into your vehicle.
  • guide is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.

ECU OVERVIEW
Haltech's Elite 2500 T takes the art of engine calibration to a whole new level. Featuring a robust environmentally sealed waterproof case, drive by wire throttle control, intake and exhaust cam control, short term and long term map learning, dual channel knock control, and much more, the Elite 2500 T provides engine calibrators the tools they need to get the job done right. Alongside this ECU is the Elite Software Programmer (ESP) that brings levels of functionality and user friendliness never seen before in an engine control package. Together they offer true cutting edge technology to tuners and performance enthusiasts worldwide.
  • Supports 1 to 12 Cylinder engines
  • 2 to 4 Rotor engines
  • Normally aspirated or forced induction
  • Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
  • Staged, Sequential, semi sequential, batch or multipoint injection patterns
  • Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
  • Connect to a wide range of display dashes and expansion devices via CAN.
  • Waterproof Case (With Pocket Cover Fitted)
  • 8 x Fuel Injection Outputs
  • 8 x Ignition Outputs
  • 12 x Digital Outputs
  • 10 x Analogue Voltage Inputs
  • 4 x Synchronised Pulsed Inputs
  • 4 x Dedicated inputs (Dual Knock, ignition Switch & onboard MAP Sensor)
  • 2 x Dedicated Engine Position Inputs with extensive trigger type support
  • Up to 45 channels of Input & Output (I/O) expansion (via CAN)
  • USB Laptop communication (Windows)
  • ESP Calibration Software - Intuitive and easy to use

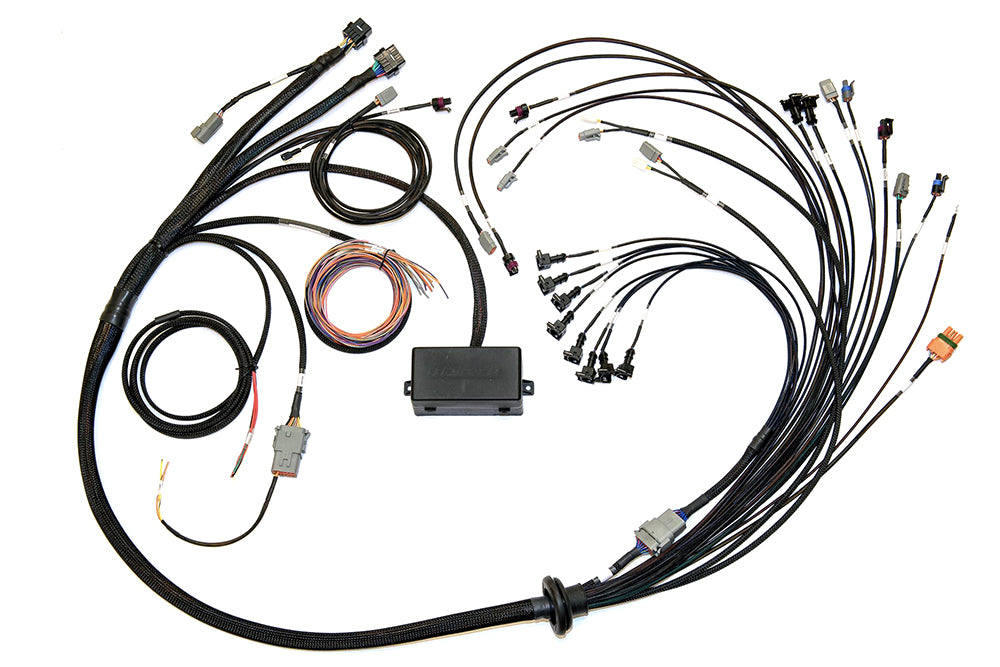

Elite 2500 T + V8 Small/Big Block GM, Ford & Chrysler Terminated Harness Kit
Outputs: Up to 8 injector and 8 ignition.
Suits: V8 GM Small/Big Block
V8 Ford Small/Big Block
Chrysler HEMI
Includes: Elite 2500 T ECU with DBW, Advanced Torque Management and Race Functions, engine harness with fuse block, firewall grommet and distributor/MSD ready ignition harness, USB programming cable and USB Software Key.
Notes: 8 individual ignition coil ready (Direct fire) when used with HT-130306, HT-130311, HT-130312 or HT-130313
