Elite 2500 + GM GEN IV LSx (LS2/LS3 etc) DBW Ready Terminated Harness Kit, Injector Connector: Bosch EV6 (as per factory)
Elite 2500 + GM GEN IV LSx (LS2/LS3 etc) DBW Ready Terminated Harness Kit, Injector Connector: Bosch EV6 (as per factory)
Regular price
£2,544.00 GBP
Regular price
Sale price
£2,544.00 GBP
Unit price
per
Tax included.
SKU: HT-151367
Couldn't load pickup availability
The fastest and most cost effective way to wire your race car or engine conversion! Simply connect a handful of labelled wires and this plug and Play product allows you to be up and running in just a few hours.
- efficient Haltech Plug'n'Play product that allows you to be up and running in just a few hours.
- quick start guide will walk you through installation of the Haltech Plug'n'Play harness into your vehicle.
- guide is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.
ECU OVERVIEW
Elite 2500 is a two-connector, stand-alone ECU ideal for popular late model performance and racing applications. Recommended for 4, 6, 8 cylinder, Drive-By-Wire (DBW) or 2, 3, 4 rotor engines, EFI conversions, engines with multiple variable camshafts. Featuring a robust environmentally sealed water-resistant IP67-rated case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, dual channel knock control, and much more, the Elite 2500 ECU provides engine calibrators with the tools they need to get the job done right. The Elite 2500 ECU is now paired with the new Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to tuners and performance enthusiasts worldwide.
- Supports 1 to 12 Cylinder engines
- 2 to 4 Rotor engines
- Normally aspirated or forced induction
- Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
- Staged, Sequential, semi sequential, batch or multipoint injection patterns
- Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
- Connect to a wide range of display dashes and expansion devices via CAN.
- Waterproof Case (With Pocket Cover Fitted)
- 8 x Fuel Injection Outputs
- 8 x Ignition Outputs
- 12 x Digital Outputs
- 10 x Analogue Voltage Inputs
- 4 x Synchronised Pulsed Inputs
- 4 x Dedicated inputs (Dual Knock, ignition Switch & onboard MAP Sensor)
- 2 x Dedicated Engine Position Inputs with extensive trigger type support
- Up to 45 channels of Input & Output (I/O) expansion (via CAN)
- USB Laptop communication (Windows)
- Now using the new NSP Calibration Software .

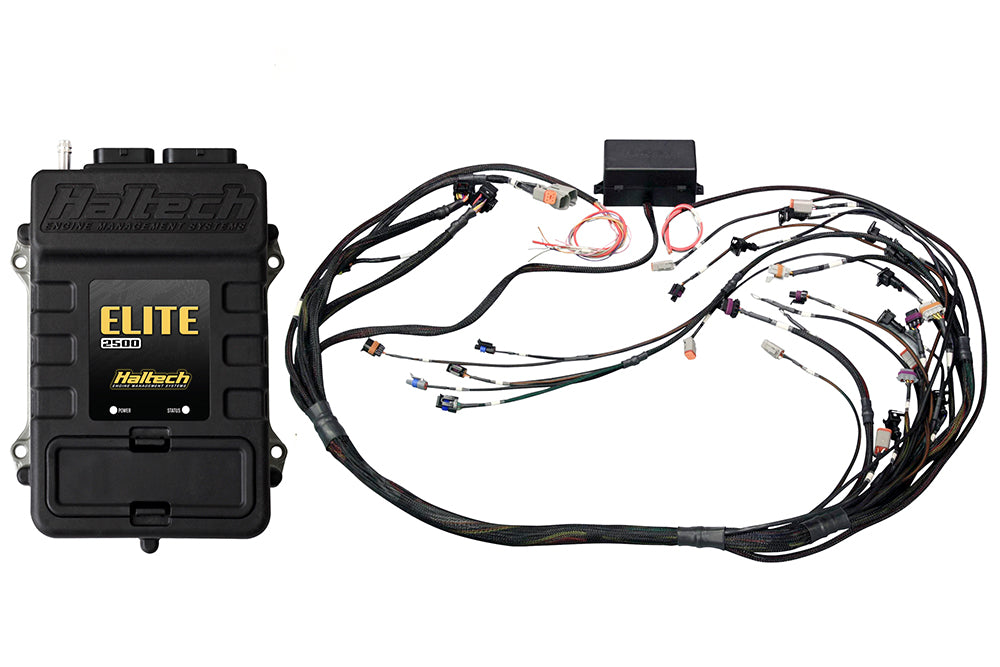

Elite 2500 + GM GEN IV LSx (LS2/LS3 etc) DBW Ready Terminated Harness Kit
Suits: Common US style Delco/Bosch GM alternator connector.
Pre-wired to connect directly to OEM 7 Pin Coil Harness Connector.
Manual transmission only.
Includes: Elite 2500 ECU with DBW and Race Functions. engine harness with fuse block, firewall grommet, USB programming cable and USB Software Key.
Notes: Please confirm your alternator connector (See the product quick start guide) and order an alternator adaptor if required. (HT-040090 or HT-040091)
LS2 Ignition coils and harnesses are NOT included.
